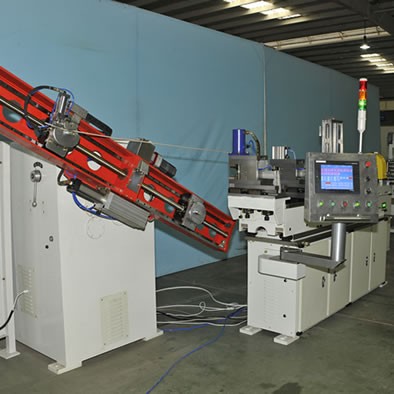

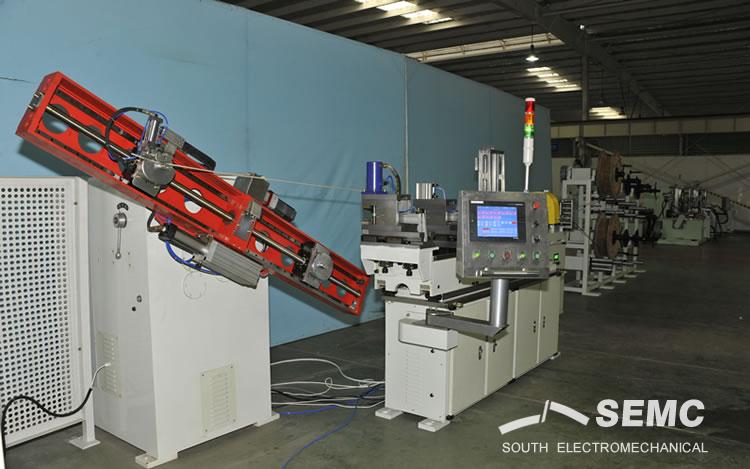

model: SKRB20-8

單根導線寬度single wire width

2.5~15mm

單根導線厚度single wire depth

1~4mm

SKRB20線圈總長度范圍coil total length L1

400~2200 mm

SKRB30線圈總長度范圍coil total length L1

400~3200 mm

SKRB20線圈梭心距coil bobbin distance L2

300~2000mm

SKRB30線圈梭心距coil bobbin distance L2

300~3000mm

線圈截面寬度coil section width A

5~25mm

線圈截面高度coil section height B

10~80mm

引線長度范圍 coil lead length range

50-350 mm

梭芯直徑coil bobbin diameter

依客戶要求定制upon customer request

放線盤數量pay-off reel qty.

按客戶要求定制upon customer request

并列根數paralleling wire number

2

距離地面中心高度height above ground center

1250 mm

繞線后尺寸精度size accuracy after winding

±0.2mm（未下模具之前）

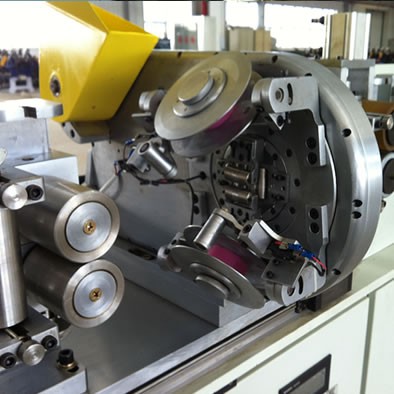

在線同步匝間繞包頭轉速online synchronous interturn win

ding&taping head rotating speed（Max.）

220r/min

疊包率overlap rate

0-75%可調節adjustable

主軸轉速main shaft rotating speed（stepless speed change無級變速）

0~25r/min實際工作轉速受匝間繞包速度限制actual working speed subject to interturn winding&taping speed

主軸最大載荷main shaft max. load

1000kg

轉數計數容量revolution counting capacity

0~9999

放線架（單線棍）阻尼力矩（雙阻尼）pay-off rack (single wire rod) damping torque (double damping)

5~100N.m
